ANGULAR MACHINE VICE

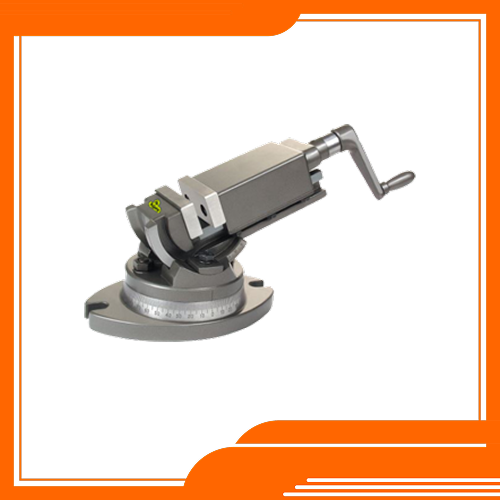

AJ-203/SGI ANGULAR MACHINE VICE
Features:
- BODY IS MADE OF GREY SG IRON
- SWIVEL RANGE 360 DEGREE AROUND BASE
- VERTICAL TILTING MOVEMENT 90 DEGREES
- HARDENED AND GROUNDED JAW WITH GROOVE PROVIDED WITH “V” SHAPE
- MOVING JAW RUNS IN LONG PRISMATIC SLIDE WITH PROVISION FOR WEAR ADJUSTMENT
- PROVIDED REMOVABLE HARDENED STEEL JAW
- IDEAL USE FOR DRILLING AND MILLING OPERATIONS
- FITTED WITH THRUST BEARING FOR SMOOTH MOVEMENT
| SIZE | Max jaw opening | WEIGHT | Master Carton | |
|---|---|---|---|---|
mm | MM | kg | ||
50 MM | 50 | 3.5 | 4 | |
75 MM | 75 | 8 | 2 | |
100 MM | 100 | 18 | 2 | |
125 MM | 125 | 32 | 1 | |
150 MM | 150 | 40 | 1 | |
200 MM | 200 | 60 | 1 | |
